UPDATE: "The Administrator" Ammo Counter has been updated and is back in stock!

"The Administrator" Airsoft Ammo Counter

The display unit and the sensor unit connected via a cable

A wider shot of the wire linking the display and sensor units

A close view of the display unit whilst it is switched on

A four-panel image showing four instances of colour and graphic customisation on the display

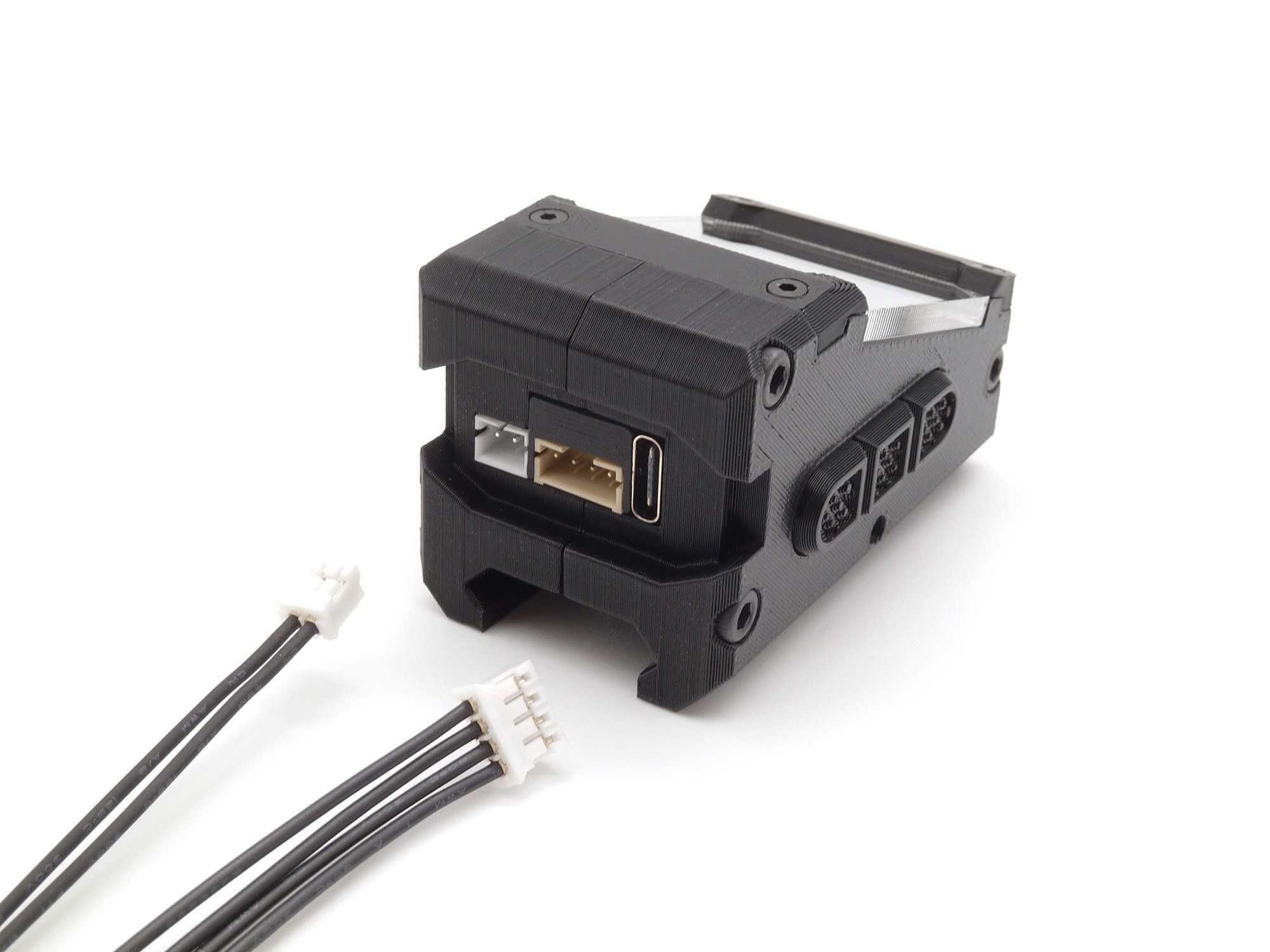

Rear view of the display and sensor units, showing the connectors, threads, and the TPU wire cap designed to protect the exposed connectors on the back of the display unit

The sensor unit with the cap removed to reveal a metal 14mm counter-clockwise thread on the front

A rear view of two sensor units, showing the difference between the regular plastic insert, and the metal insert

This display unit shown alone whilst switched on, showing a customised ammo level on the screen

An example of how the display unit would look when mounted to a P90

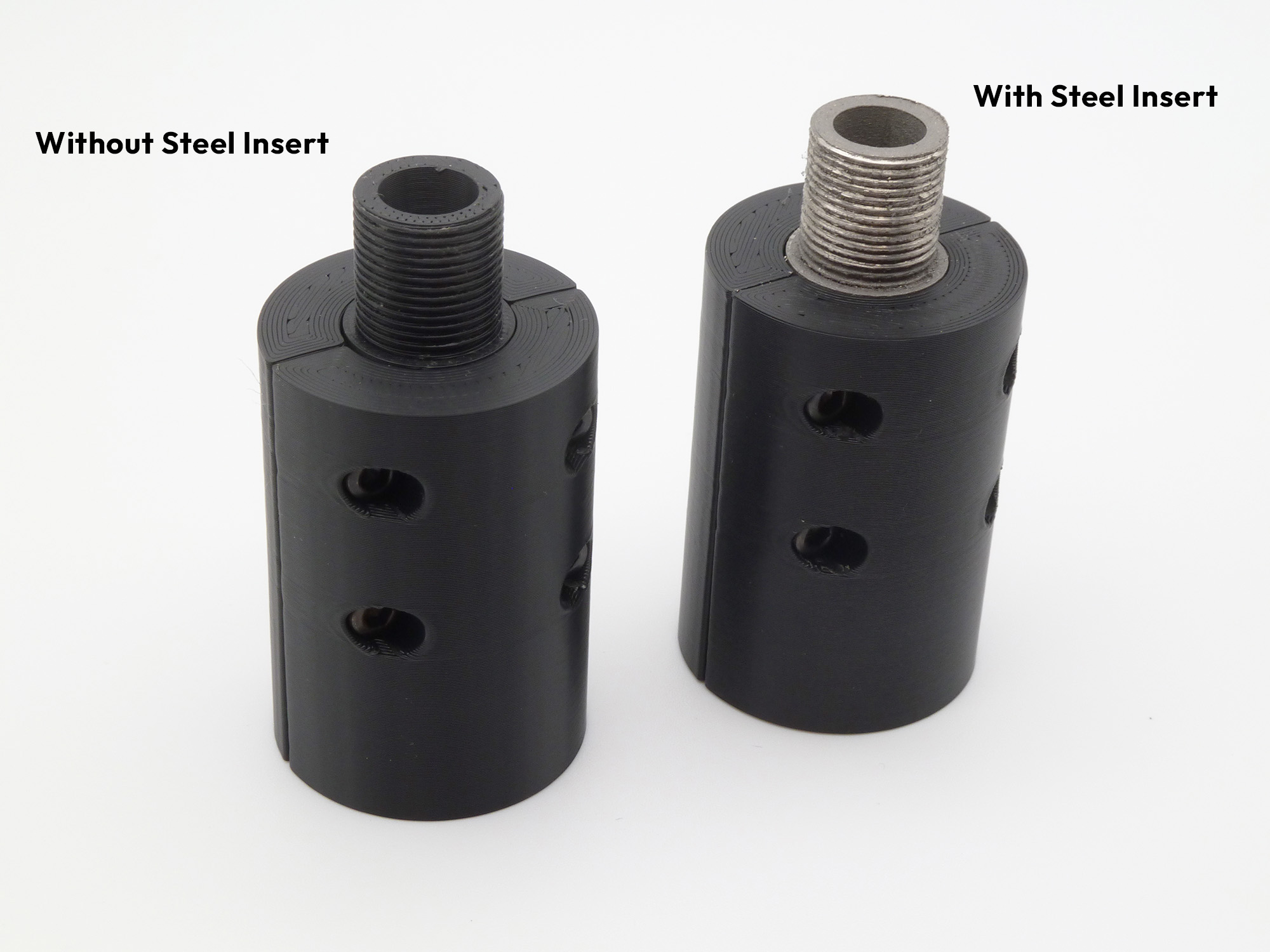

A comparison showing the two front threads of the plastic insert and the metal insert side-by-side

A multi-function computer for your airsoft gun. Keep track of your shots taken, remaining ammo, and the speed/power of your shots, all whilst having one of the most eye-catching sci-fi accessories you could imagine.

Only requires a 20mm rail, and a 14mm CCW barrel thread for the sensor.

Please note: You will need a 2.5mm Hex Drive to install the unit, and a USB-C cable to charge the unit.

See below for more info.

Detailed Info

Tech Specs

Ever spent 5 minutes during an airsoft skirmish dry-firing at people like a moron without realising you were out of ammo? With "The Administrator" Ammo Counter, you'll always keep an accurate track of every BB that flies down your barrel! Designed to fit onto any 20mm rail, this playing companion will give you the edge when it comes to detecting gun faults, keeping track of ammo, preventing dry-firing, and looking totally sci-fi on the field.

An all-new iteration of the Ammo Counter (V7) is now available. There's been numerous design improvements since the last version. Including: Full-colour display, larger display resolution, more powerful processor, smaller size, larger battery, customisable interface, BB-Dump function, Help menus, Chronograph, RPS measurement, larger buttons, and much more! It's now lower profile and an overall smaller package than before!

Features:

Keep track of the amount of BBs left in your magazine.
Supports magazine sizes from 1 to 9999.
One-touch reload button to reset any counters.
Count either up or down.
Rechargable 600mAh battery, charged with a USB-C cable (not included).
10 save-able presets, which will support up to 10 different mags/guns.
Does not count dry-firing, so it will always keep an accurate count.
Self-illuminated display, with adjustable brightness.
Comes with spare screen protector.
Low rail profile (30mm) so optics can be used behind unit.
Supports up to 40-50rps.
Customise display orentation, mount it in any direction.
Comes with a charging/chronograph feature to measure shot power, and RPS.
Comes with 50cm of JST-PH cabling to connector display module to sensor module.
Customisable interface: colours schemes and interface design can be changed.
Small profile (see dimentions specs).
Plug & Play system; no connections needed to the internals of your gun.
Ammo dumping and saving features; account for lost BBs on mag pull, and save your count when powering-off.

With this purchase you'll recieve:

1x Main Display Module. Designed to be attached to a 20mm rail.
1x Sensor Module. Designed to be threaded onto a CCW 14mm thread. Pick between non-steel or steel options for the insert (core) of the item. Steel allows for a stronger assembly and will work with larger accessories such as supressors.
1x 50cm JST-PH cable. Designed to connect the Sensor Module with the Main Display Module.
1x Rail Clamp. Designed to be used in conjunction with the 30mm M3 bolt to secure the Main Display Unit to a 20mm rail.
1x 30mm M3 bolt.
1x TPU Wire Cap (For the Main Display Module). Designed to help keep dust and debris out of the enclosure.
1x TPU Wire Cap (For the Sensor Module).
1x Spare Acrylic screen protector.
1x Instruction Booklet.

Max tolerances:

Max ~30,000 RPS. (Good luck testing that out!)
Max operating temperature 60°C. (Dictated by enclosure material properties).
NOT waterproof, advised to protect the unit if using in excessively damp or rainy environments.

Dimensions:

Display Unit: 36mm (W) x 35mm (H) x 61mm (L). (Adds 30mm height above rail)
Sensor Unit: 32mm (W) x 32mm (H) x 64mm (L).

Display specs:

Resolution: 128x128 pixels.
Colourspace: RGB565 (65,336 possible colours).
Active display size: 25.5mm x 25.5mm

| Materials: PLA-ST, Fibreglass, Stainless steel, Acrylic, various metals, etc.
| Average print-time: 8 hours.
| Average post-processing/assembly time: 1-2 hours.
| Average turnaround time: 2-4 days.
