U94 PTT Guard

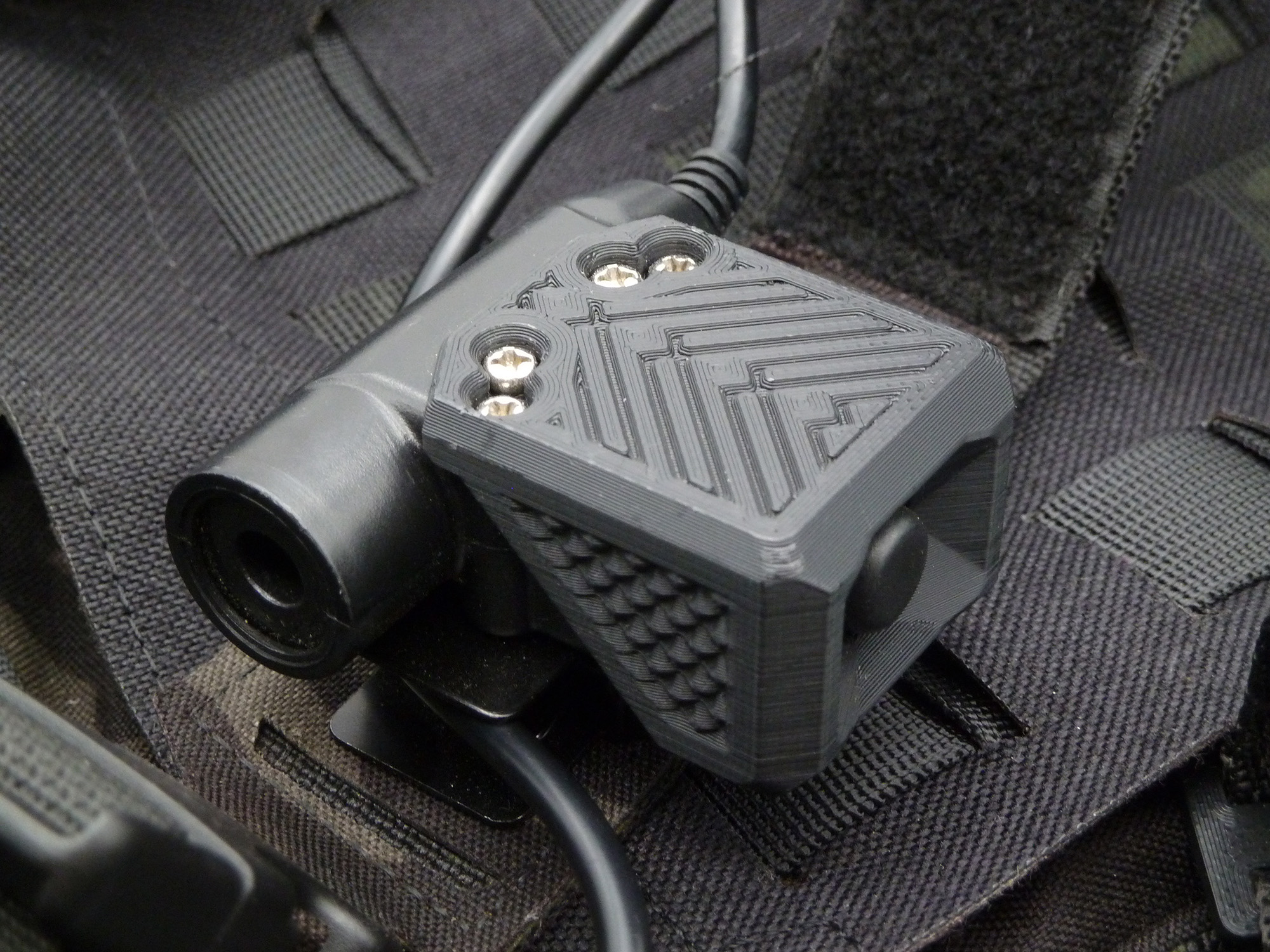

A shot of the guard installed onto a U94 PTT whilst attached to a piece of gear via a MOLLE loop

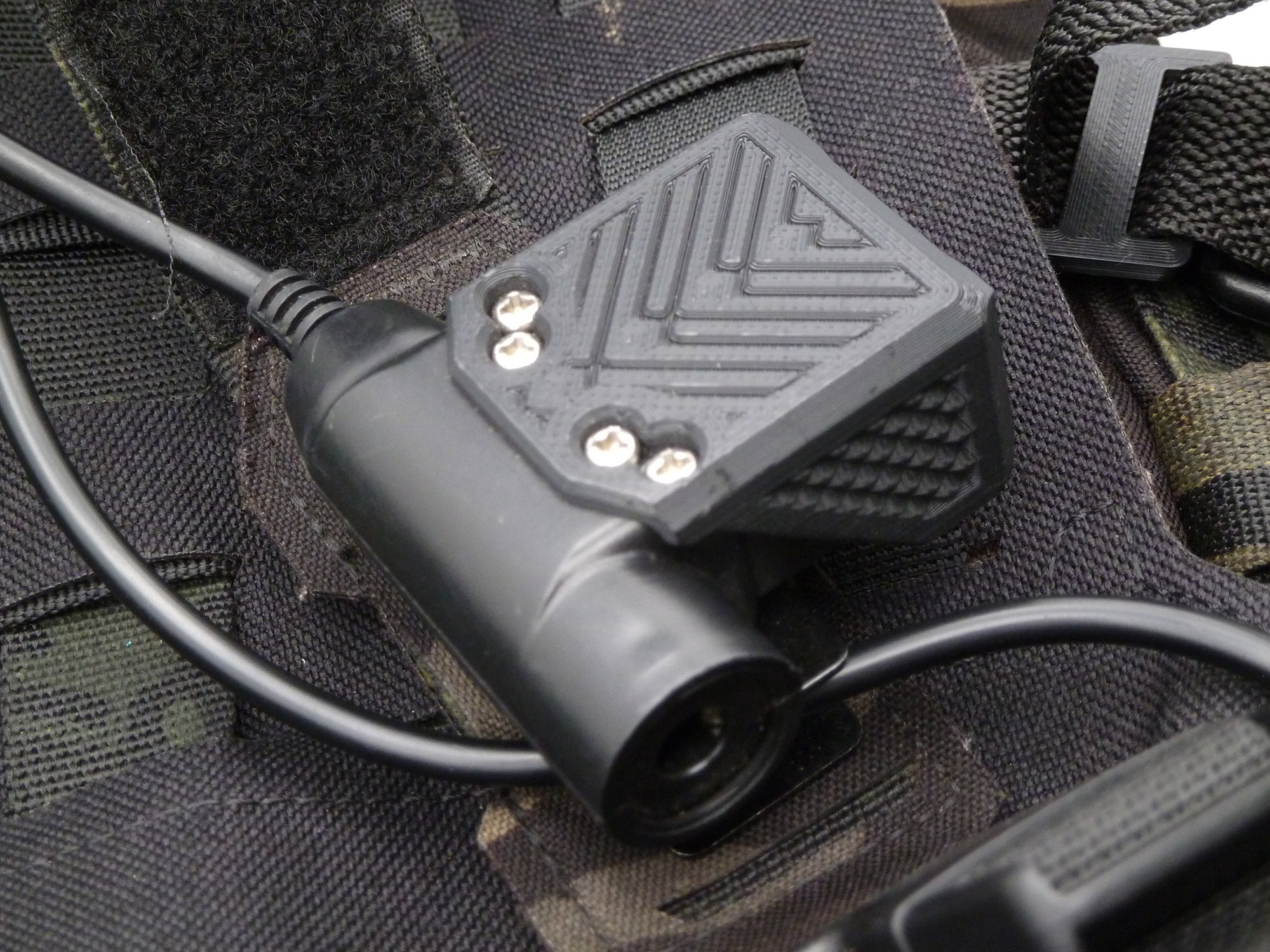

A second shot of the guard and PTT installed onto a piece of gear showing the side pattern

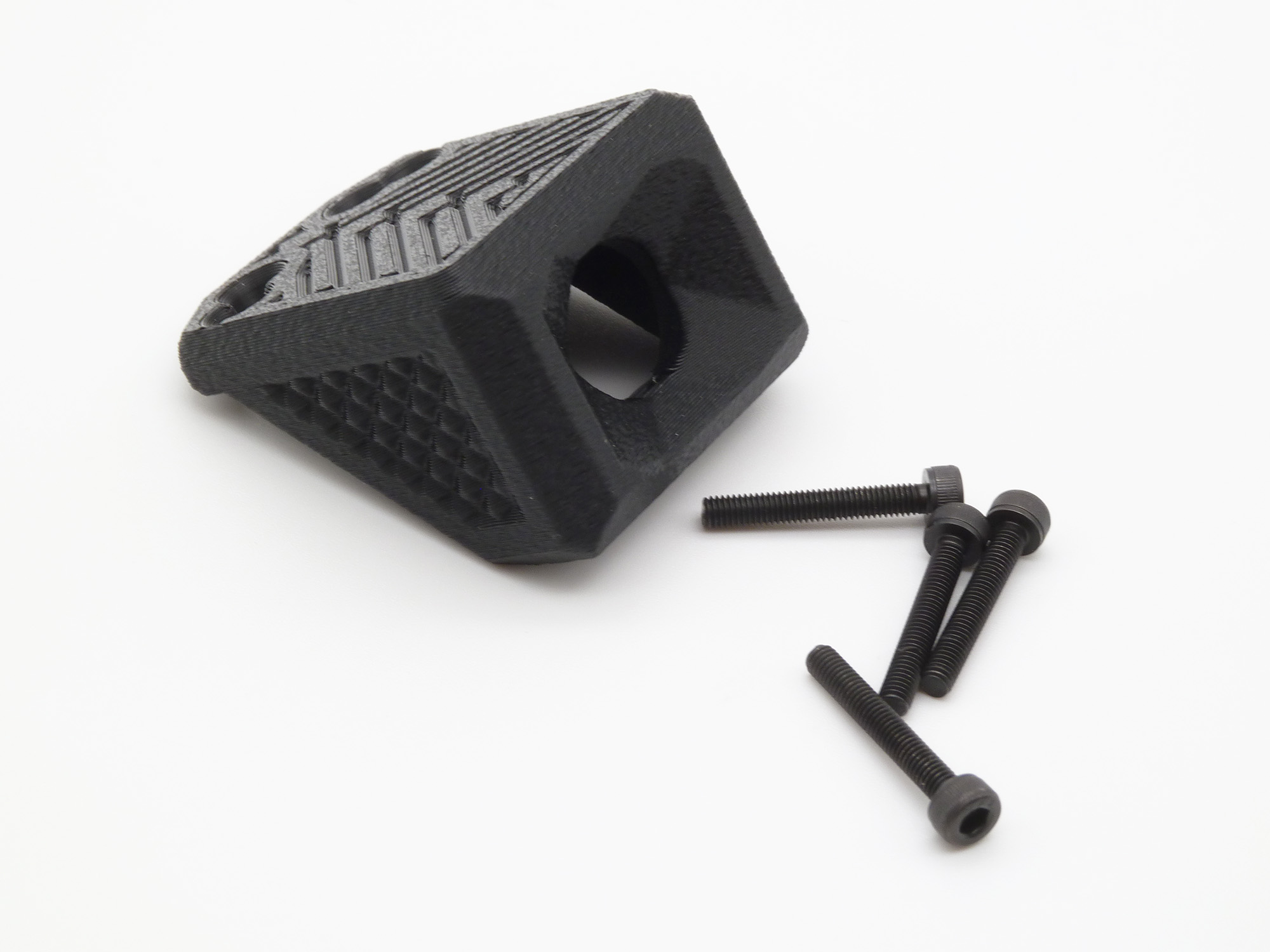

A standalone shot of the guard and four optional 25mm M3 bolts

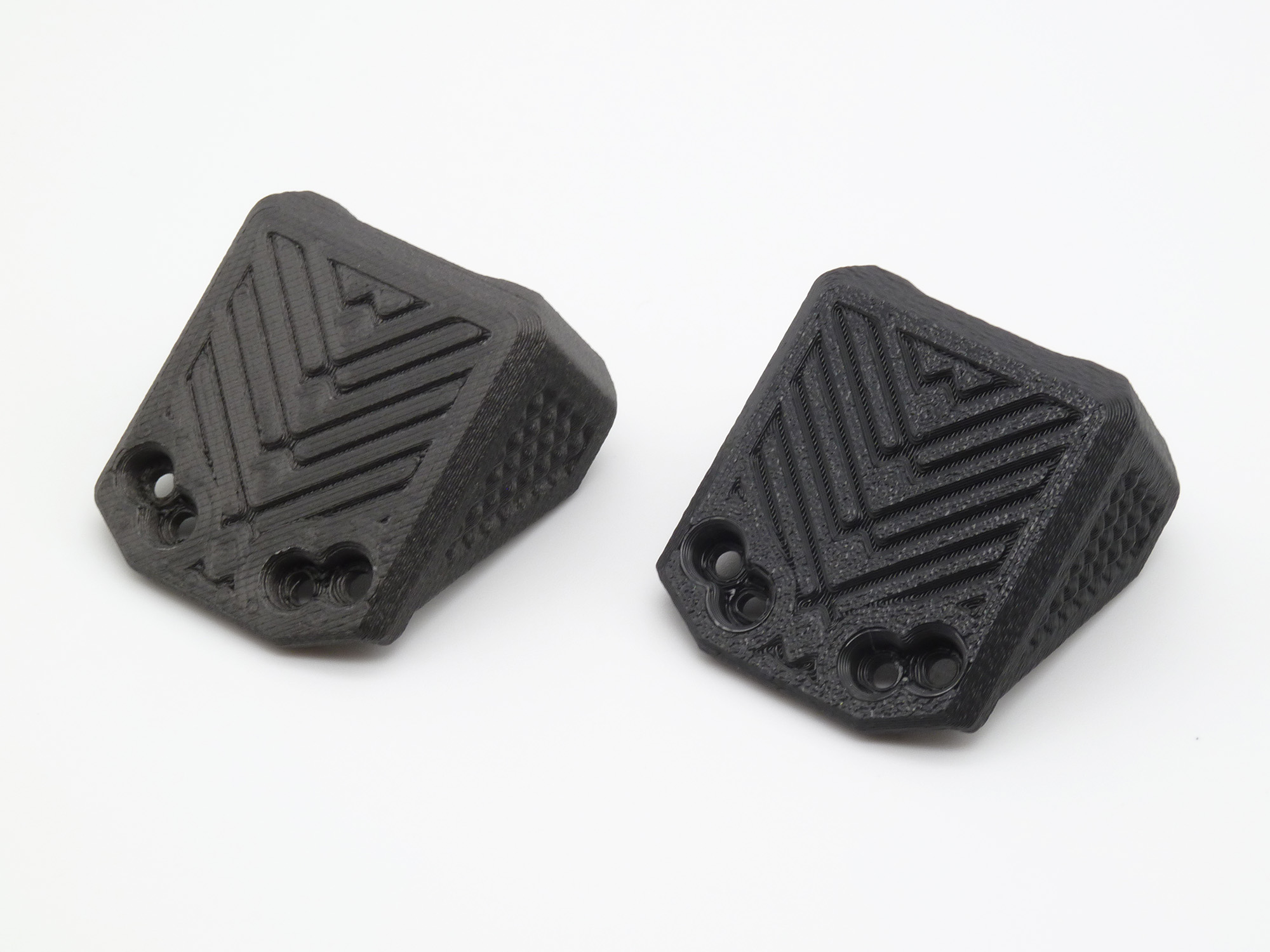

Comparison of two guards made from, left, PLA-ST and, right, PA12-CF

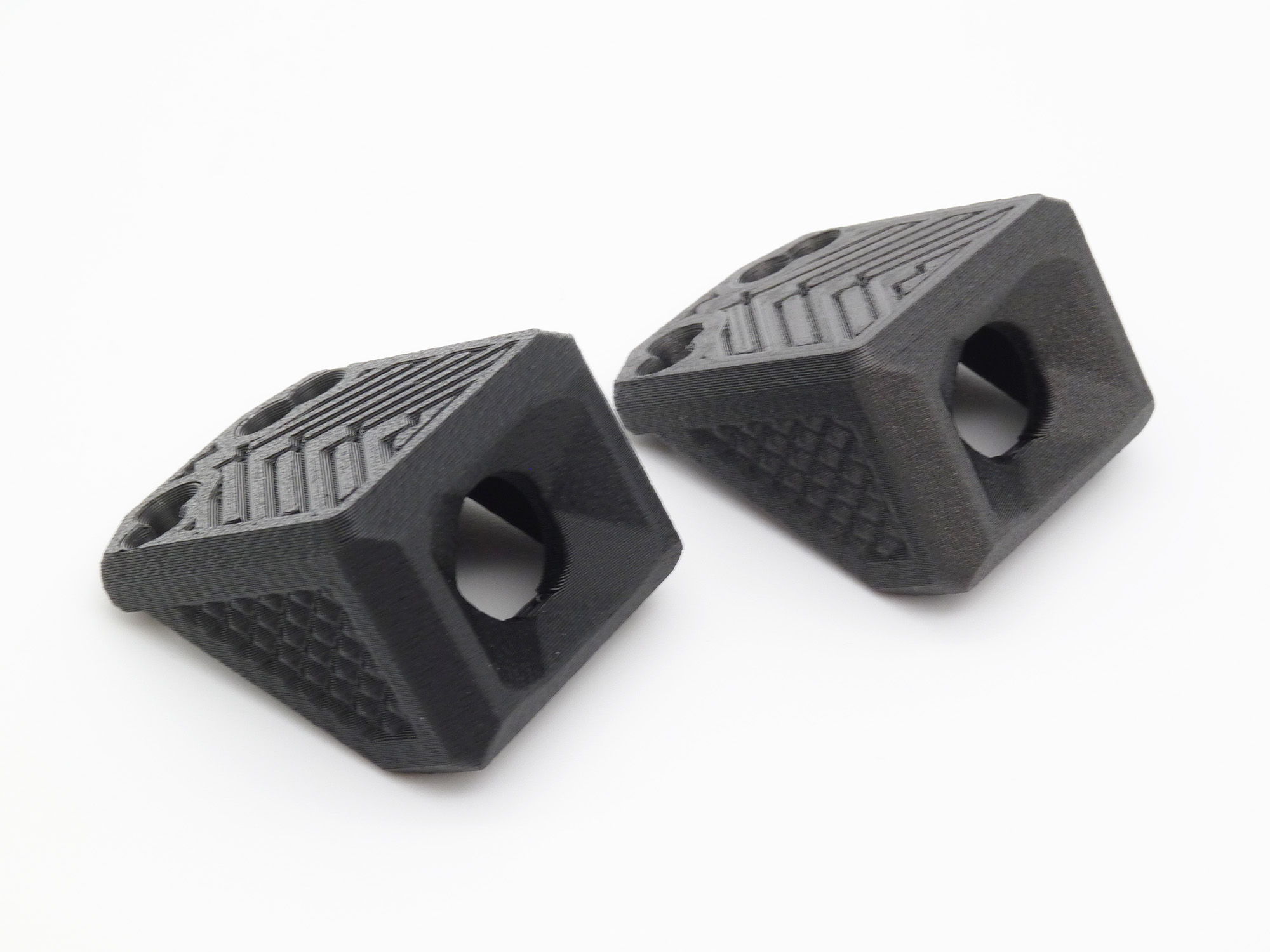

Another comparison shot showing the two guards made from, left, PA12-CF, and right, PLA-ST

A printed guard for your U94-style push-to-talk unit.

Designed to snap on, it utilises the existing 4 bolts that comes with the unit to provide protection against hot mic-ing, and can help it withstand any damage while on the field.

Compatable with most generic U94-style PTT units. Please check that you have a unit with a smaller standard-sized button, as it will not fit SRS Tactical PTT units.

Designed to integrate with the existing clamp, you can either use the original bolts that come with the PTT unit, or add some self-colour (black) bolts to match the colour of the guard.

Usage
Tech Specs

To attach:

1. Remove the 4 bolts from your PTT unit. Be careful not to pull the two halves of the unit apart while the bolts are out.

2. Hook the bottom side of the guard onto the underside of the button, then push the back side of the guard (the side with the bolt holes) down and it should make a confident snap into place.

3. Replace the 4 bolts into the same position as before, either using the original bolts, or the ones provided with the kit.

With this purchase you'll recieve:

  • A 3D Printed PTT guard.

  • (Optional extra) 4x 25mm Hex-head socket-cap screws. (Self-colour [Black])

| Materials: PLA-ST or PA12CF (Carbon fibre nylon).
| Average print-time: 1 hour.
| Average post-processing/assembly time: >1 hour.
| Average turnaround time: 1-3 days.

Material Options

PLA-ST
CF-Nylon
Super-Tough Polylactic
Acid + Calcium Carbonate
+ Acrylic Resins
Polyamide (Nylon)-12
+ 20% Carbon Fibre
content
  • Great for casual airsofters who attends games one in a while.
  • Suitable for lower-itensity applications.
  • Will be affected by hot environments. (Withstands temps up to 60°C before deformation)
  • Perfect for cosplayers.
  • Has a smoother satin finish.
  • Less expensive option.
  • Great for power-users looking for a tougher product.
  • Suitable for intense airsofters seeking sturdy equipment.
  • More resistant to hot temperatures. (Withstands temps up to 176°C before deformation)
  • Expected to be used very regularly.
  • Has a rougher matte finish with a slight grey hue.
  • More expensive option.
