Low-Profile P90 Upper Reciever

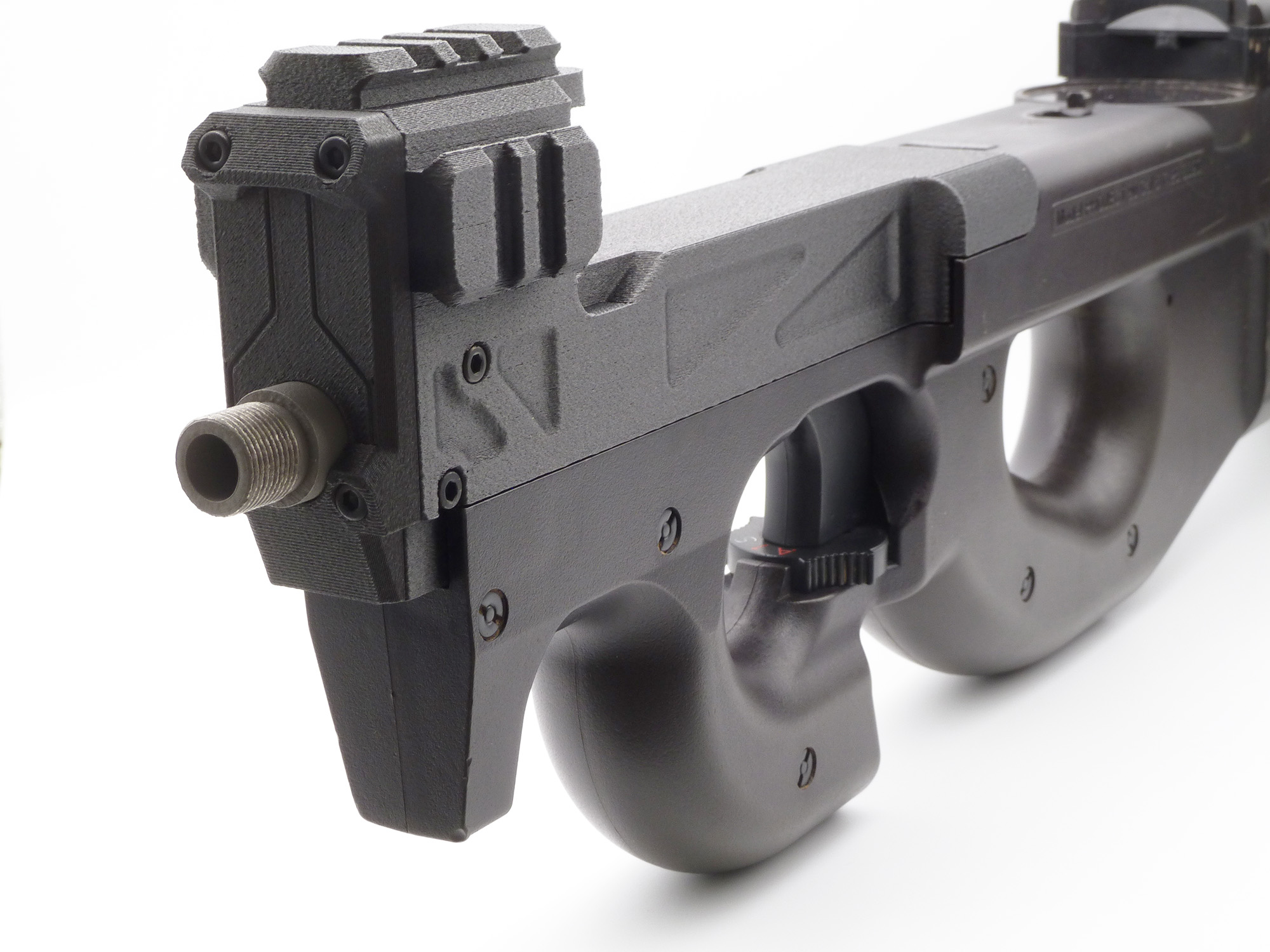

Totally transform the look and feel of your P90 by replacing the bulky upper receiver with this fresh low-profile solution! Choose from two designs; a Swordfish-style spiked strikeface, or a flat strikeface.
Simply remove the barrel from your current receiver and insert it into the new one, and you're good to go!
The receiver is especially adaptable for CQB as it removes a considerable amount of weight away from the front of the weapon, focusing most of it to the back, near the shoulder.
You'll gain increased maneuverability, whilst taking up a smaller, more compact footprint. It reduces the height of a P90 by around 30mm, and reduces the weight by over 150 grams.
Usage
Tech Specs
To attach:
1. Remove your old upper receiver by pressing the slotted button underneath where the magazine lies, right in front of the bb intake. While depressed, pull the receiver off towards the front of the gun.

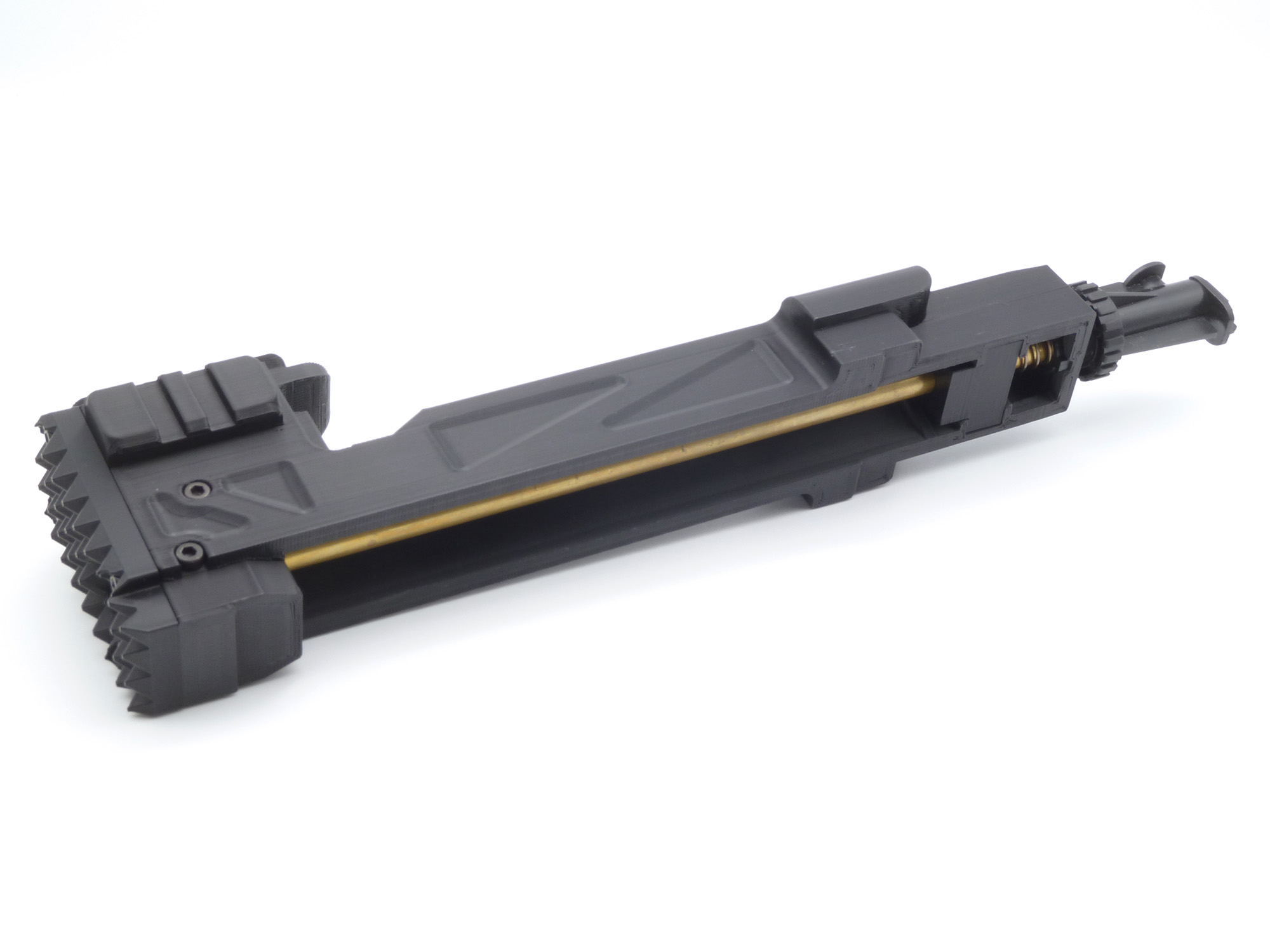

2. Remove the barrel & hopup unit by pushing hopup inwards and it'll move around a millimeter or two. With it still pushed in, twist the barrel by 90 degrees. This should have disengaged the barrel from the receiver, so it will now pull out. Make sure to retain the small spring at the base of the barrel, this spring keeps the barrel in place when installed.
3. Insert the barrel, hopup, & spring into the new reciever. It's the same process but in reverse.
4. Once the barrel is in, you can attach the low-profile receiver to the body of the gun in the same fashion; buy sliding it in from the font until you hear a click of the button engaging.
To remove:
Perform the same steps for the low profile receiver as above to re-install the original receiver.
With this purchase you'll recieve:

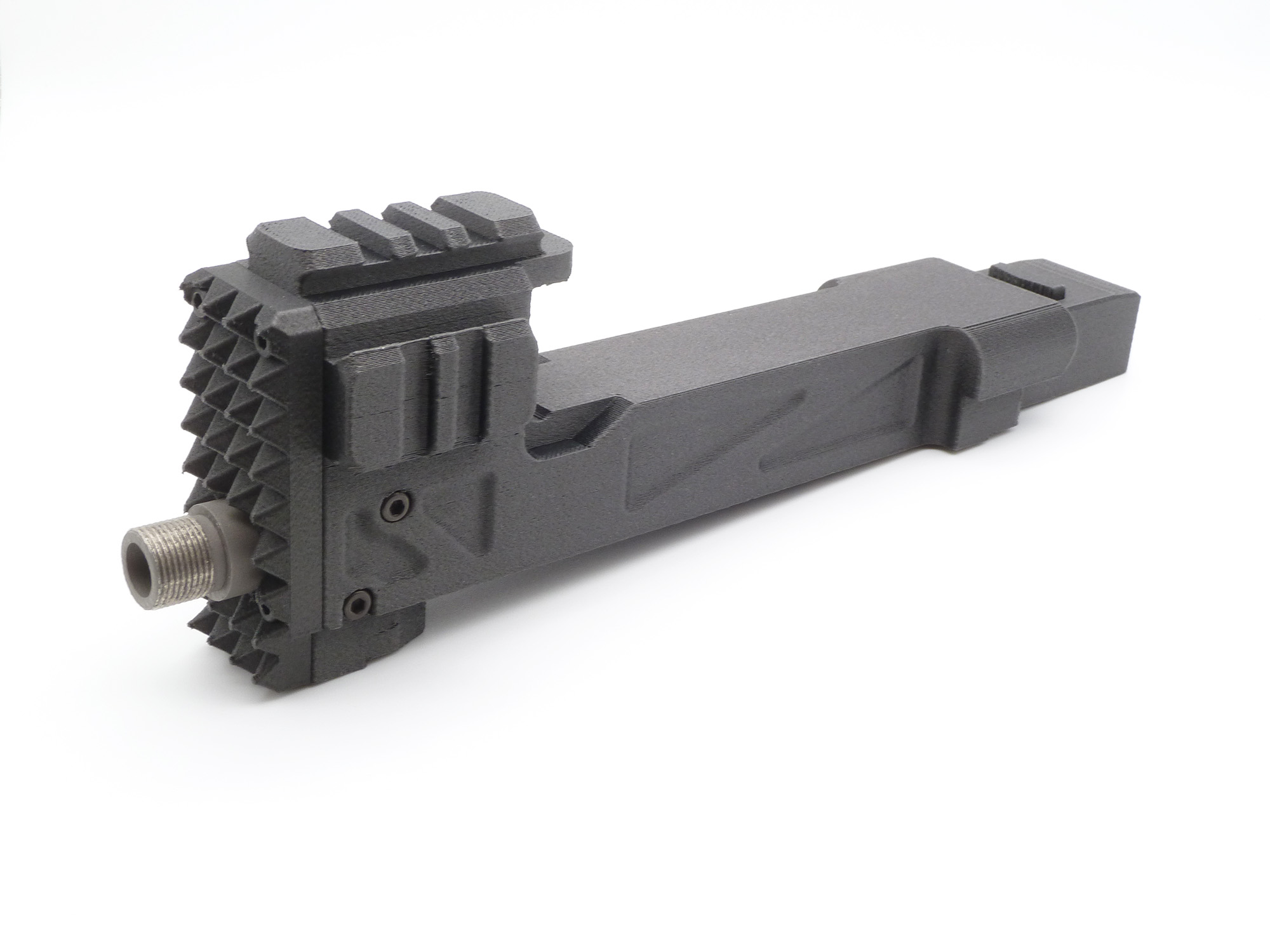

-A 3D Printed P90 Low-Profile Upper Receiver made of either your choice of PLA-ST, or PA12CF (Nylon). This includes the retention assembly which houses the release button. Features 1x top 20mm rail for attaching optics [50mm in length], and two side rails for additional accessories [30mm in length].

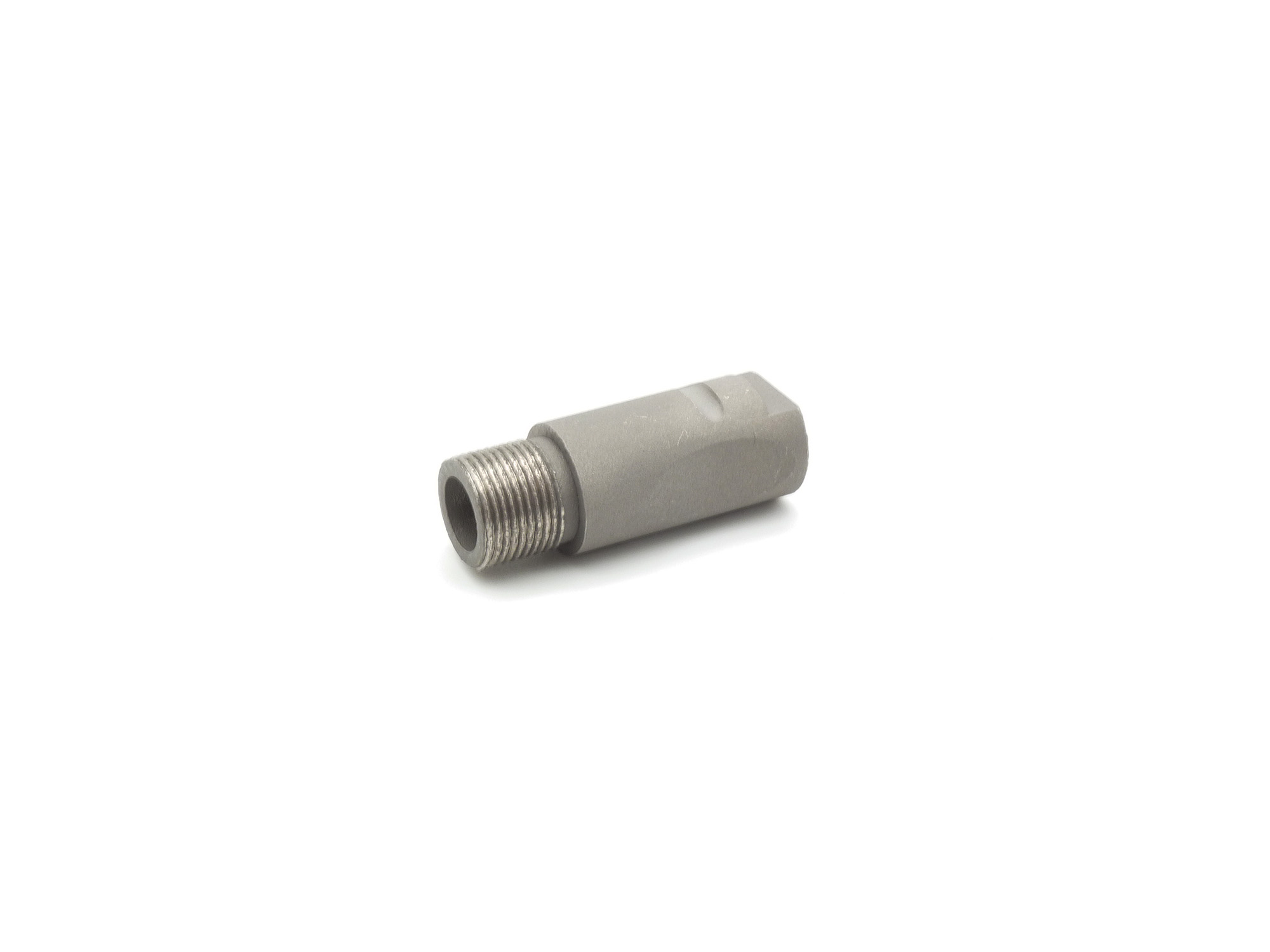

-Two front inserts, one threaded, and one unthreaded. (Select which one comes pre-attached at checkout).
-Two 25mm Hex-head (2.5mm) bolts for securing the insert to the unit (pre-installed).
| Materials: PLA-ST or PA12CF (Carbon fibre nylon).
| Average print-time: 11 hours.
| Average post-processing/assembly time: >1 hour.
| Average turnaround time: 2-4 days.
Material Options
PLA-ST
CF-Nylon
Super-Tough Polylactic
Acid + Calcium Carbonate
+ Acrylic Resins
Polyamide (Nylon)-12
+ 20% Carbon Fibre
content
- Great for casual airsofters who attends games one in a while.
- Suitable for lower-itensity applications.
- Will be affected by hot environments. (Withstands temps up to 60°C before deformation)
- Perfect for cosplayers.
- Has a smoother satin finish.
- Less expensive option.
- Great for power-users looking for a tougher product.
- Suitable for intense airsofters seeking sturdy equipment.
- More resistant to hot temperatures. (Withstands temps up to 176°C before deformation)
- Expected to be used very regularly.
- Has a rougher matte finish with a slight grey hue.
- More expensive option.
